Sheet extrusion lines process plastic materials into continuous sheets through melting, extrusion, calendering and cooling. Depending on the material and structure, the finished sheets can be used for food containers, electronic packaging, optical parts and industrial products. Our sheet extrusion lines support both mono-layer and multilayer production, including high-barrier sheets with structures of up to nine layers, and are manufactured with in-house control over the complete production process.
Technical Capabilities
- Multilayer Co-Extrusion: Supports single-layer and 2 to 9-layer co-extrusion to produce sheets with different structures. Hengrui has mature experience especially in the field of mechanical manufacturing of multi-layer high-barrier co-extrusion equipment.
- Multiple Screw Options: Single-screw, parallel twin-screw and planetary roller single-screw extruders are available for processing materials such as PET, PP, PS, PE, PC, ABS, PMMA and etc. supporting stable extrusion under vacuum conditions.
- Precise Thickness Control: The sheet thickness tolerance can be controlled within ±1%, meeting production requirements for accurate sheet dimensions.
Production Range
- Sheet Thickness: From 0.05 mm to 3.6 mm, suitable for applications ranging from thinner optical and packaging sheets to thicker functional products
- Sheet Width: From 310 mm to over 2000 mm, with customized widths available according to die specifications
- Output Capacity: Single-line output ranges from 300 kg/h to 2000 kg/h to meet different production scales
- Material Compatibility: Suitable for processing PET, PP, PS, PE, PC, HIPS and other plastic materials
The configuration of the extrusion lines can be adjusted according to material type, sheet specifications and production requirements. Our team of engineers are ready to help clients with technical recommendations for different processing needs.
Optical & Clear Sheet Solutions
-

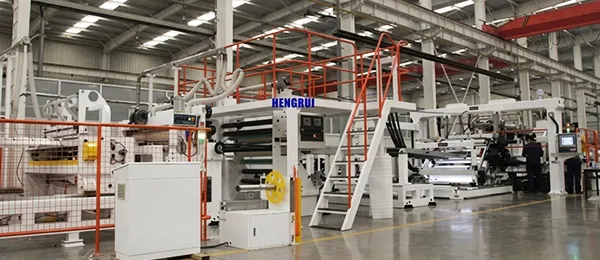

- PC Optical Sheet Extrusion Line
- Sheet Width: 700–1250 mm
- Sheet Thickness: 0.05–1.5 mm
- Output Capacity: 400–600 kg/h
-

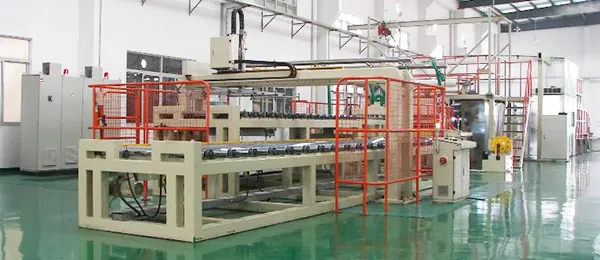

- PMMA / Acrylic Sheet Extrusion Line
- Sheet Width: 1300 mm
- Sheet Thickness: 0.5–10 mm and above
- Output Capacity: 500 kg/h
Packaging Sheet Solutions
-

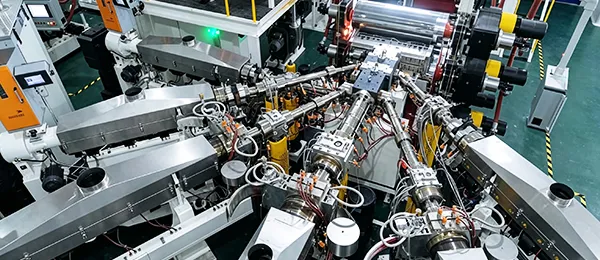

- PP/PS Barrier Sheet Extrusion Line
- Sheet Width: 310 – 1700 mm
- Sheet Thickness: 0.7 – 3.6 mm
- Thickness Tolerance: ±1%
- Output Capacity: 300 – 2000 kg/h
-

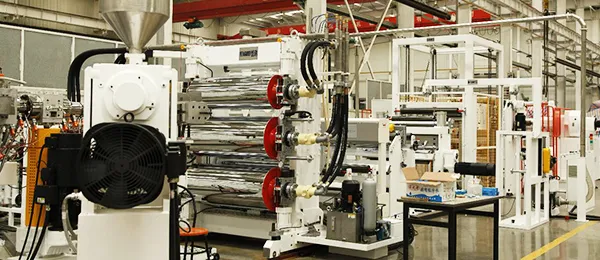

- PP/PS Multilayer Sheet Extrusion Line
- Layers: 2–7
- Sheet Width: 500–1500 mm
- Sheet Thickness: 0.2–3.0 mm
- Output Capacity: 400–1700 kg/h
-

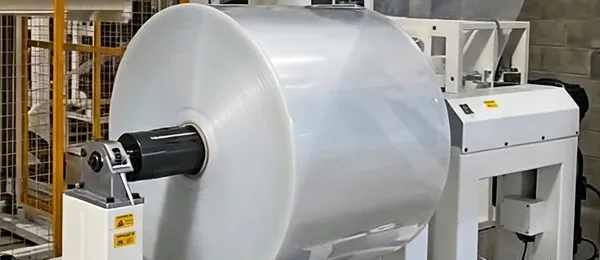

- PP/PS Mono-Layer Sheet Extrusion Line
- Sheet Thickness: 0.4–2 mm
- Thickness Tolerance: ±10–20 μm
- Sheet Width: 850 mm
- Output Capacity: 500 kg/h
-

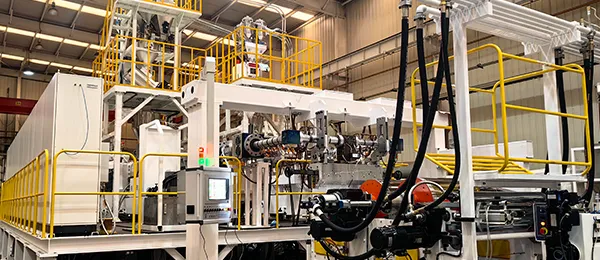

- Twin-Screw PET Sheet Extrusion Line
- Sheet Thickness: 0.3–2 mm
- Thickness Tolerance: ±10–15 μm
- Sheet Width: 930 mm or 510 mm × 2
- Output Capacity: 1100 kg/h
-

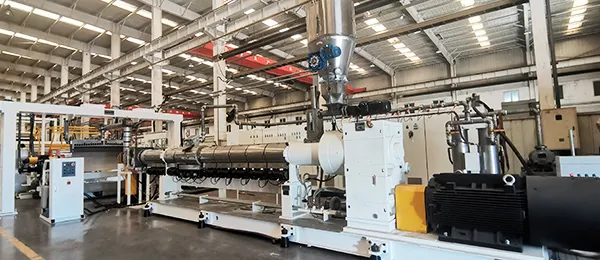

- Single-Screw PET Sheet Extrusion Line
- Sheet Thickness: 0.2–2.2 mm
- Thickness Tolerance: ±10–22 μm
- Sheet Width: 850 mm
- Output Capacity: 1300 kg/h
Since 1994, Hengrui has been dedicated to the design and manufacturing of customized plastic extrusion machines. We provide complete extrusion lines for producing plastic sheets, boards and films, processing materials including PP, PE, PS, PC, PMMA, PET, EVOH and ABS.
Our plastic extrusion systems cover applications from thin plastic sheets with a thickness of 0.02 mm to heavy-gauge boards up to 40 mm thick, with production widths exceeding 3 meters. With our portfolio of extruders, downstream equipment and extrusion lines, we provide customized plastic extrusion solutions for manufacturers and processors in food packaging, electronics, automotive, construction, furniture and other industrial applications.
